Customized 8-inch long-shaft compact motor kit for efficient power transmission

Submit your inquiry now and embark on a journey of high efficiency!
Product Parameters
The main parameters
Number Projects Specification Remarks
1 Motor diameter 200mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 600±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft mm
10 lead exposed 500mm
11 Size of connectors 3+6 waterproof head
12 Brake mode Electromagnetic brake
13 Shaft material 45cr
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20 to 65 degrees
Close
Product Details
Product Introduction

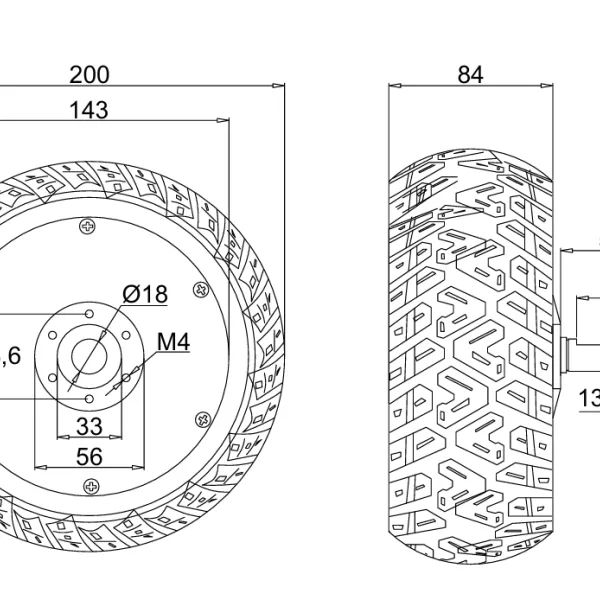

This 8-inch diameter, 200mm tire width, 84mm single-sided axle standard go-kart motor is a core power unit specifically designed for go-karts used in leisure, commercial tracks, and science and technology education. Utilizing mature single-sided axle technology and standardized size design, it balances power output stability with installation versatility. It satisfies the driving pleasure needs of casual players while also meeting the high-efficiency and durability requirements of commercial operation scenarios, making it the preferred solution for go-kart production, upgrades, and parts replacement.
Advantages and features
The 8-inch (200mm) standard wheel diameter, paired with an 84mm wide tire tread, significantly improves the go-kart's grip on the ground, ensuring smooth driving and cornering stability. The precise size matches the mounting holes of most standard go-kart wheel sets, requiring no modifications to the frame structure, making installation quick and efficient.
Application Scenario
Leisure and entertainment scenarios: Suitable for parent-child go-karting and scenic area leisure go-karting projects, with stable and controllable power output to ensure the safety of novice drivers and children, while also taking into account the fun of driving;
Commercial track scenarios: Suitable for commercial go-karting clubs and theme park track operations, with high stability during high-frequency operation, convenient maintenance, and can reduce equipment maintenance costs and downtime for the operation team;
